allflag

AllFlag visual identity — v0.4.0+6

AllFlag is modern, global, simple and friendly. Your country. Your flag. is the in-app tagline. Explore the world one flag at a time. is the secondary marketing phrase, reserved for promotional material rather than adding clutter to country discovery. National flags provide most of the interface’s color.

Identity and assets

The original AllFlag mark is an abstract waving flag with a simple pale pole, blue/cyan upper ribbon and orange/pink lower ribbon on navy. It represents no country and contains no text. The navy tile works in both themes. Keep the silhouette, spacing and colors together; never substitute a national flag.

Run from the repository root after editing mark.json:

powershell -NoProfile -ExecutionPolicy Bypass -File tool/generate_branding.ps1

Do not hand-edit generated images or Android vector paths. Geometry is shared across exports. The 1024px and legacy icons use 1.25x artwork magnification; adaptive foreground geometry remains inside the central safe region to tolerate launcher masks. PNGs are supersampled and iOS app icons have opaque navy backgrounds with no pre-applied corner mask. iOS owns its final corner mask. Review at 48px as well as at full size after regeneration. UI tokens and native launch backgrounds must be kept aligned if the palette changes.

Tokens and themes

lib/ui/brand_theme.dart owns BrandTokens and both Material 3 themes. AllFlagApp persists an explicit Light or Dark preference. The header moon/sun button switches immediately to the opposite theme with a localized action label. Fresh installs and legacy System values resolve once from platform brightness (dark selects Dark; otherwise Light), then ignore OS theme changes. Widgets use semantic ColorScheme roles and component themes.

Token / role Light Dark
Canvas #F7F8FA #0E1624
Row/search surface #EEF1F5 #1A2638
Main text #101C30 #EAF0F8
Secondary text/icons #526176 #AFBDD0
Focus/accent #2364D8 #91B9FF
Selected surface #E2ECFC #233C60
Selected foreground #173F7B #DCE9FF

Artwork colors: navy #101C30, blue #2364D8, cyan #42C9E8, orange #FFAD66, pink #EF718C. Warm colors are artwork accents, not text colors. Component radius is 16 logical pixels, page padding 20, favorite controls at least 48x48 and country rows at least 68 high. Typography inherits the platform Material theme; country titles are 16px medium, section labels title-small and the product name headline-medium bold. Text remains scalable.

UI decisions and behavior

brand_header.dart provides the compact mark/name/tagline and designed empty search state. home_screen.dart retains the existing lazy list, state, search, favorite semantics and persistence calls. The whole discovery screen scrolls, including its header, keeping it usable on short screens or with larger text. The rounded search surface has a two-pixel accent focus outline and the exact placeholder Search countries.... Clear search remains a working action.

Favorites, Recent and All Countries use star, history/clock and globe icons. Empty shortcut sections remain hidden. Rows have subtle rounded surfaces with no shadows. Thumbnails fit within 48x32 using BoxFit.contain; country titles wrap without truncation. The independent favorite target uses outlined/filled stars, accessible Add/Remove labels and toggled semantics. Selection uses both a tinted surface and a check with a Selected semantic label. Selecting a country still shows the rotation instruction and updates at most five recents.

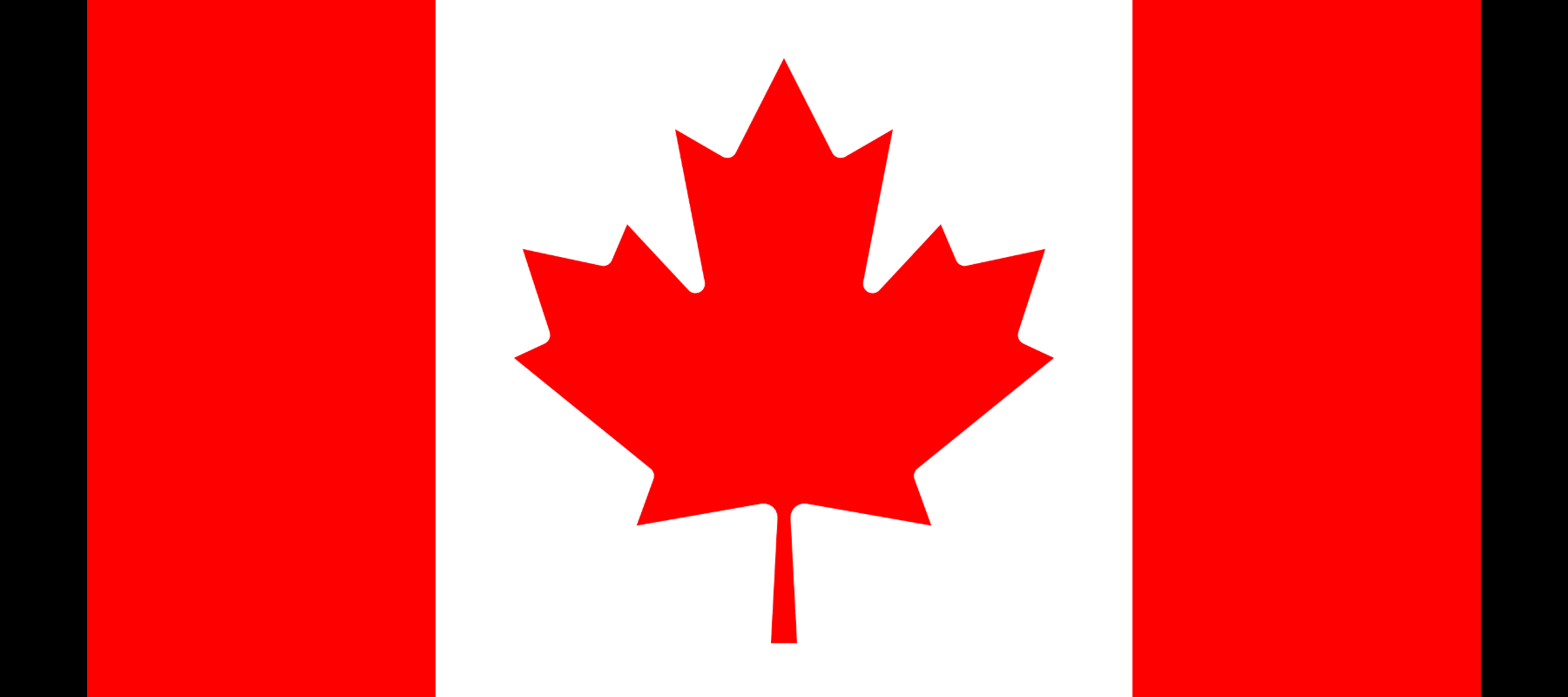

flag_screen.dart is unchanged: selected flag only, original proportions, black letterboxing as needed, no brand, close button or other overlay. No special runtime handling was added for Canada or the United States; those are only example fixture preferences in the screenshot tests.

Native launch

Android below API 31 uses a centered static mark and day/night launch surface. Android 12+ uses the native splash icon/background attributes, with the vector mark on a navy icon background. Adaptive launcher icons apply from API 26; older launchers use density-specific PNGs. No artificial delay or splash plugin.

iOS uses the existing LaunchScreen storyboard with the AllFlag image and a named light/dark background asset. LaunchImage sizes are 144 points, with 2x/3x exports. The existing app icon catalog/configuration is retained and all referenced PNGs replaced. Native iOS build and device launch validation require macOS/Xcode; they were not executable on this Windows workstation.

Validation and previews

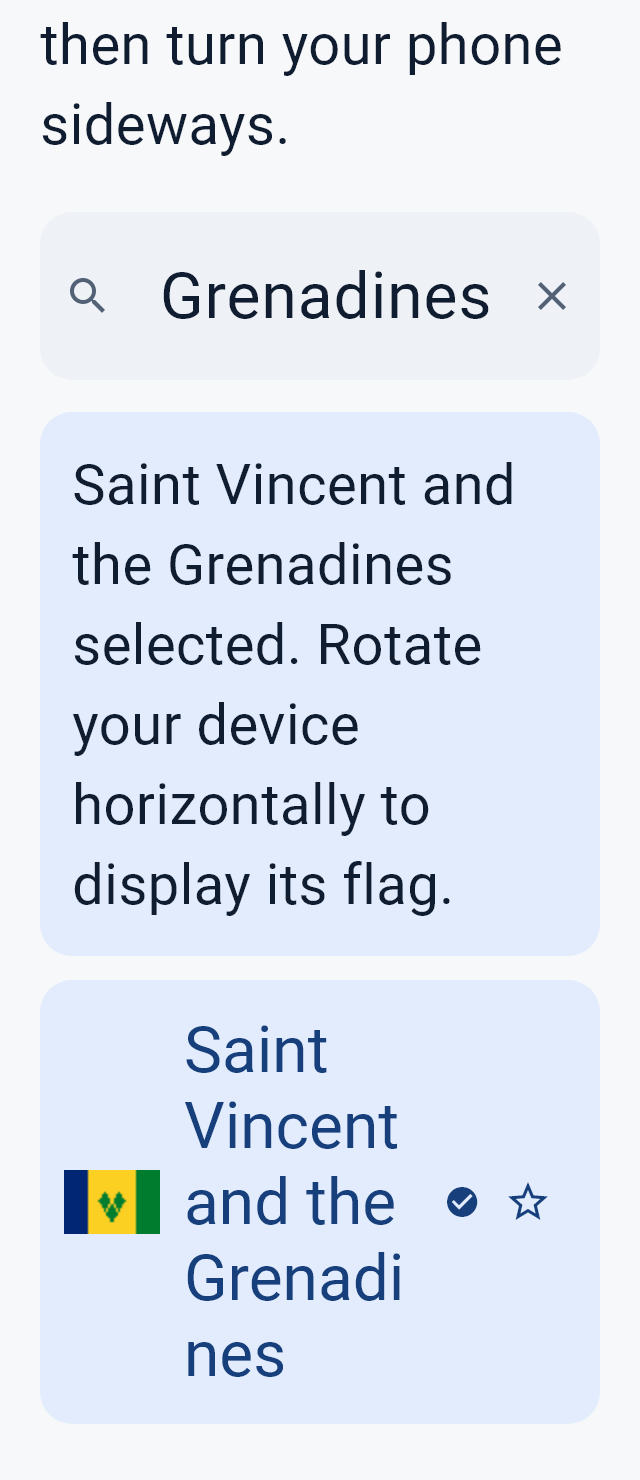

test/branding_test.dart covers header/tagline, all three headings, both system themes, empty copy, selection indicator, favorite semantics/touch targets and fullscreen behavior. It exercises all four requested long names at widths 320/375/430 with text scales 100%/200%. Existing catalog, persistence, search, recent ordering and rotation tests remain in place unchanged.

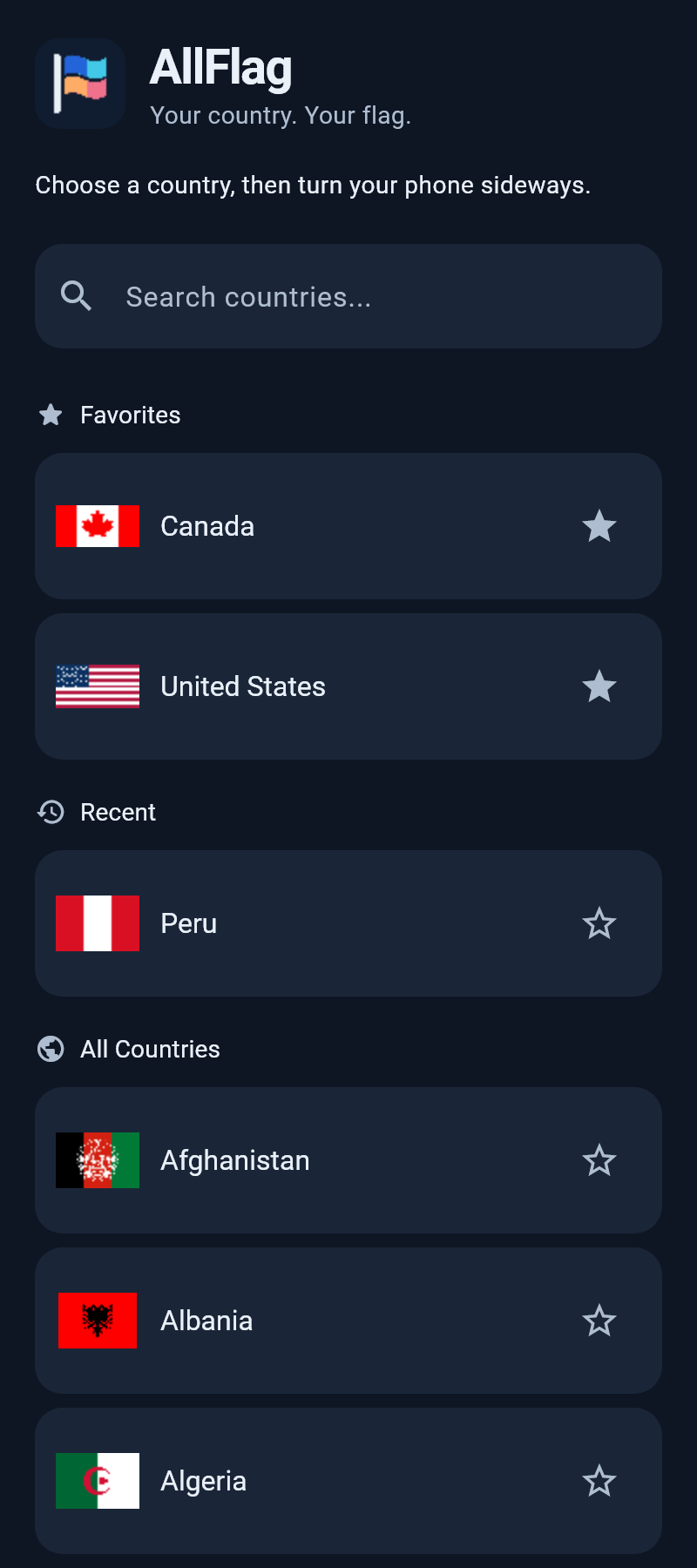

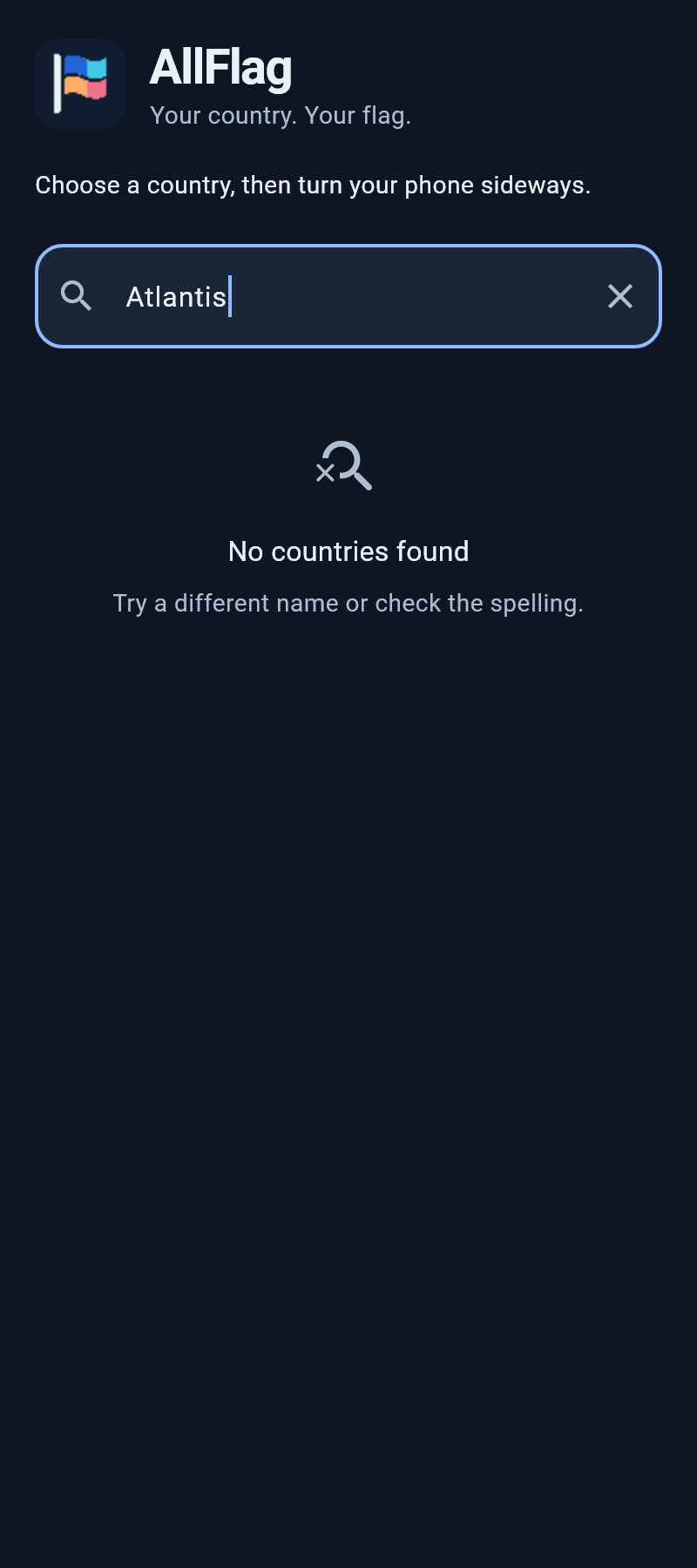

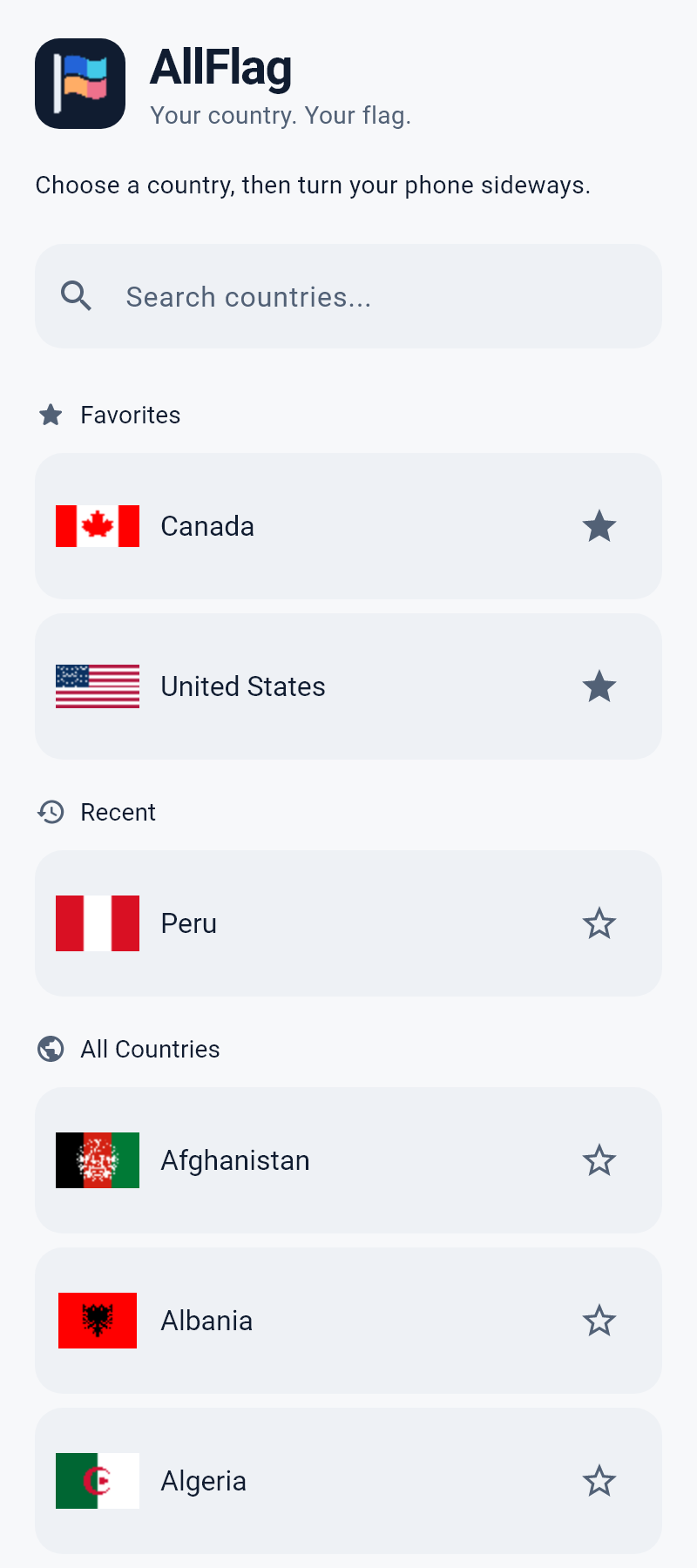

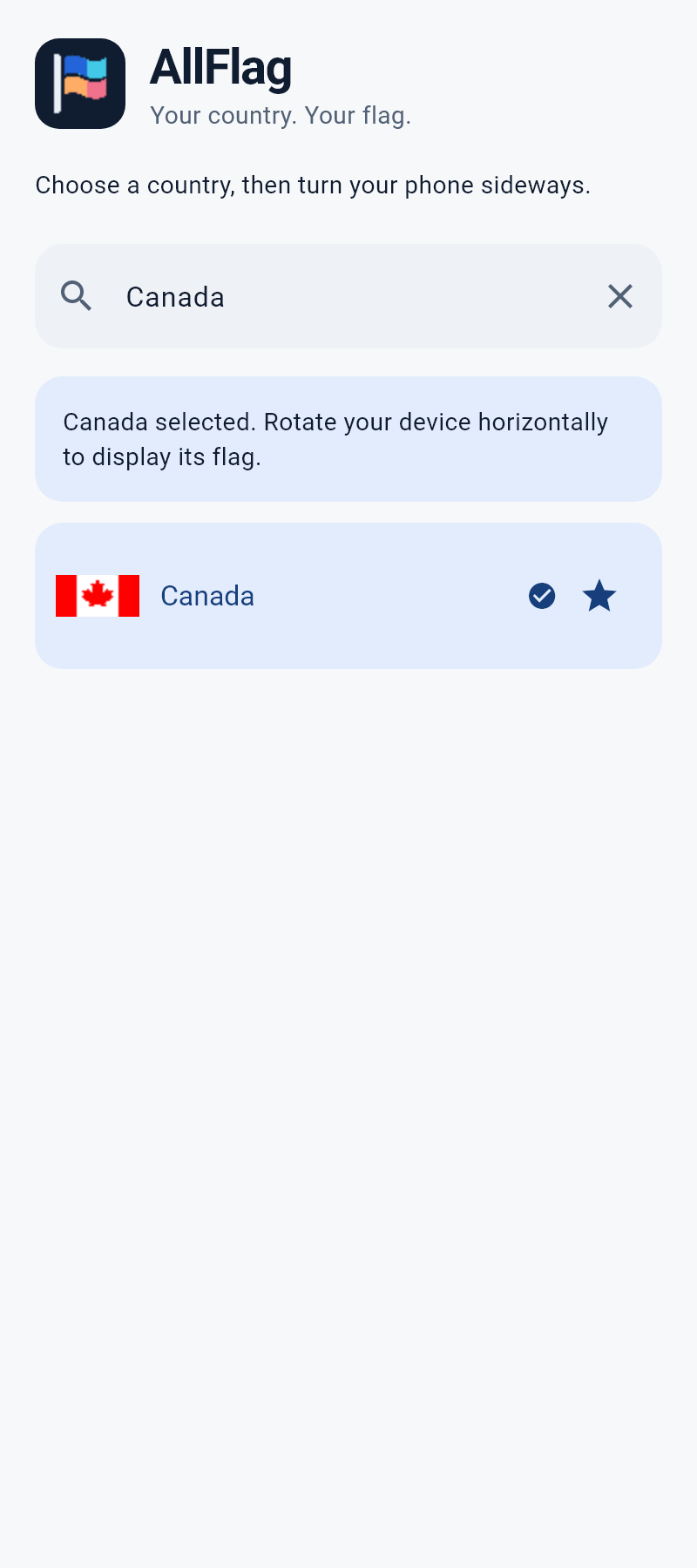

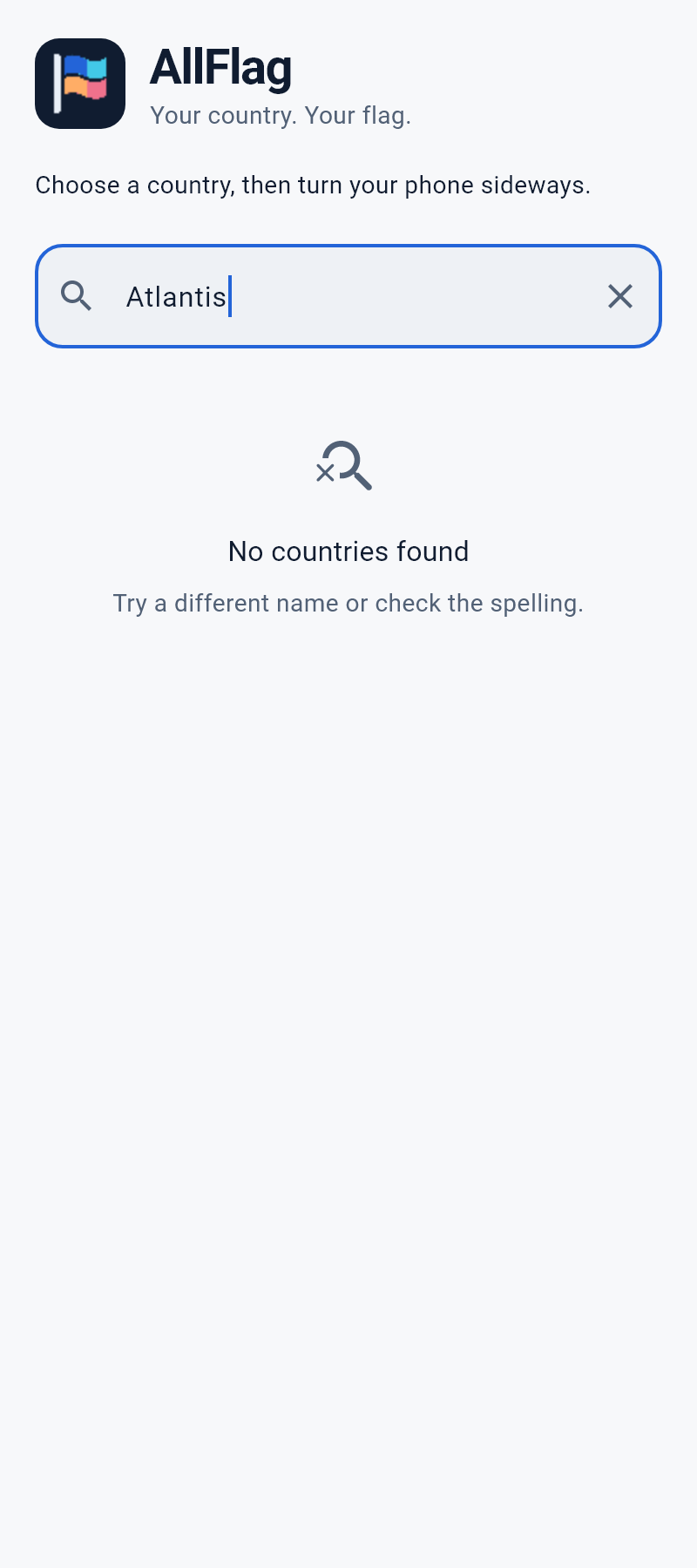

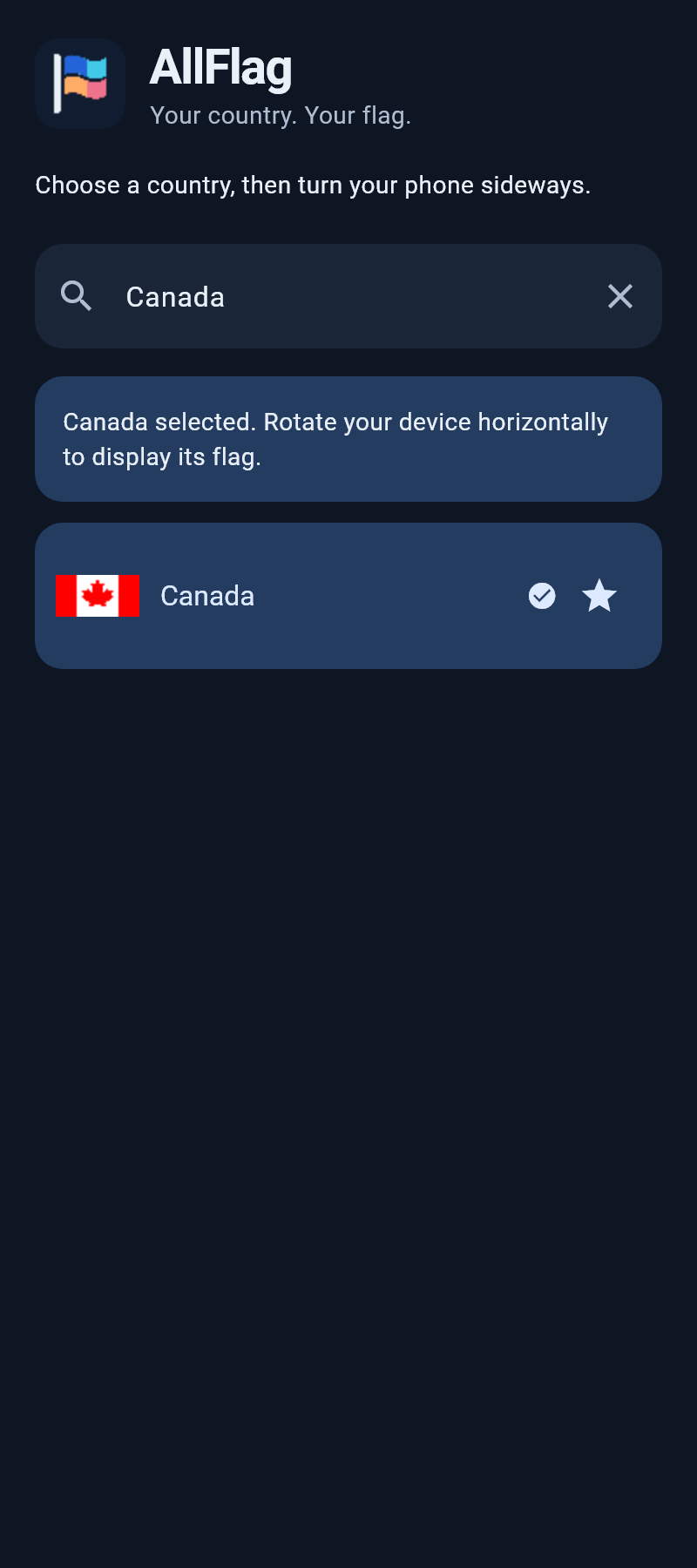

Widget-rendered previews (not physical-device screenshots):

To regenerate previews, point ALLFLAG_FONT_DIR at the Flutter SDK’s bin/cache/artifacts/material_fonts directory:

flutter test test/branding_test.dart --dart-define=ALLFLAG_CAPTURE=true --dart-define=ALLFLAG_FONT_DIR=C:/flutter/bin/cache/artifacts/material_fonts

The optional capture path loads local SDK fonts and waits for visible images to decode. Normal tests require no external font path and write no screenshots. Native launcher masks, status bars, OS splash presentation and physical-device rotation should still be checked on Android and iOS. No dependencies were added or removed. No catalog records, application ID or signing configuration changed.
